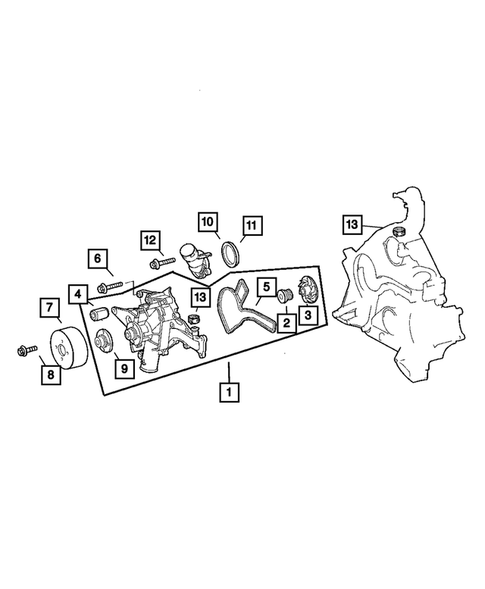

Water Pump and Related Parts for 2006 Chrysler Crossfire
No.
Part # / Description / Price
Price
N/A
Hose Hose
Mopar
Mopar Notes: Engines: 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION.
Description: Between Oil Cooler And Water Pump / Between Oil Cooler And Timing Case
1
Water Pump Mopar
Mopar Notes: Engines: 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION.
2
Impeller Seal Mopar
Mopar Notes: Engines: 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION.
3
Water Pump Impeller Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
4
Bearing Bearing Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
5
Water Pump Gasket Mopar
Mopar Notes: Engines: 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION.
6
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: M8X1.25X90.00. Power Steering Pump to Accessory Drive Bracket
MSRP $15.15
$10.83
MSRP $15.15
$10.83
6
Screw Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: [M8x110] Water Pump To Timing Case
7
Water Pump Pulley Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
8
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: M6x1.00x10.90. Engine Oil Level Indicator Tube To Cylinder Block
9
Water Pump Drive Flange Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: Coupe.
10
Thermostat Housing Mopar
Mopar Notes: Engines: 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPEED AUTO W5A580 TRANSMISSION.
Description: Includes Thermostat
11
Thermostat Housing Seal Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
12
6 Lobe External Head Bolt, Mounting Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: M6x1.0x23.0. Upper Intake Plenum To Lower Intake Manifold
13
Heater Hose Clamp Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
Description: Convertible. 23-30mm.
13
Clamp Clamp Mopar
Mopar Notes: Engines: 3.2L V6 SOHC 18 VALVE ENGINE. 3.2L V6 SUPERCHARGED ENGINE. Transmissions: 5-SPD AUTO W5A330 TRANSMISSION. 5-SPEED AUTO W5A580 TRANSMISSION. 6-SPEED MLGU MANUAL TRANSMISSION.
