Air Conditioner and Heater Plumbing for 2017 Ram ProMaster 3500

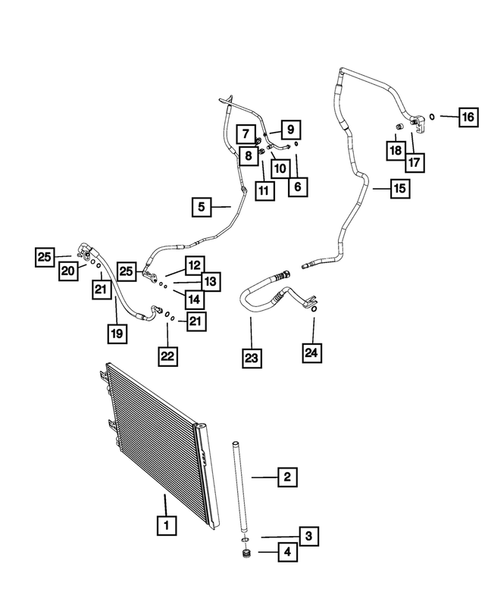

Diagram 1 1. Air Conditioning Condenser Diagram 2 2. Heater Hose Connector Diagram 3 3. Tube Clip Diagram 4 4. Hose Clamp
No.
Part # / Description / Price
Price
1
57008243AB - Air Conditioners and Heaters: Air Conditioning Condenser for Mopar Image
Air Conditioning Condenser
57008243AB
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION. 6-SPEED DUAL ACTIVE DRIVE TRANS.
MSRP $533.00
$354.09
MSRP $533.00
$354.09
2
68240019AA - Air Conditioners and Heaters: Filter for Mopar Image
Filter
68240019AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION. 6-SPEED DUAL ACTIVE DRIVE TRANS.
MSRP $53.55
$37.56
MSRP $53.55
$37.56
3
68240026AA - Air Conditioners and Heaters: Retainer for Mopar Image
Retainer
68240026AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION. 6-SPEED DUAL ACTIVE DRIVE TRANS.
MSRP $24.20
$17.65
MSRP $24.20
$17.65
4
68240020AA - Air Conditioners and Heaters: Plug for Mopar Image
Plug
68240020AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION. 6-SPEED DUAL ACTIVE DRIVE TRANS.
MSRP $50.80
$35.57
MSRP $50.80
$35.57
5
68228086AD - Air Conditioners and Heaters: A/c Liquid Line for Mopar Image
A/C Liquid Line
68228086AD
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
MSRP $197.00
$132.21
MSRP $197.00
$132.21
5
68157080AF - Air Conditioners and Heaters: A/c Liquid Line for Mopar Image
A/C Liquid Line
68157080AF
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: A/C LIQUID
MSRP $267.00
$179.20
MSRP $267.00
$179.20
6
5183358AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image
A/C Line O Ring
5183358AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: Switch to Line. Used at Switch. Suction line. For Transducer Valve.
MSRP $25.05
$18.27
MSRP $25.05
$18.27
7
5003862AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image
A/C Line Valve Core
5003862AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: Core. Accumulator.
MSRP $7.10
$5.10
MSRP $7.10
$5.10
8
68308727AA - Air Conditioners and Heaters: A/c Pressure Transducer Valve for Mopar Image
A/C Pressure Transducer Valve
68308727AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: 68308727aa. On Or After 06/28/2010. Includes: O-ring.
MSRP $144.00
$97.63
MSRP $144.00
$97.63
10
68237083AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image
A/C Line Valve Core
68237083AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: High Side.
MSRP $38.10
$28.11
MSRP $38.10
$28.11
11
5161786AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image
A/C Charge Valve Cap
5161786AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: Accumulator. Liquid Line.
MSRP $4.90
$3.57
MSRP $4.90
$3.57
12
68152002AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68152002AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: 3/8". 8.6mm ID. Lhd only.
MSRP $31.60
$23.31
MSRP $31.60
$23.31
13
68232799AA - Air Conditioners and Heaters: A/c O Ring for Mopar Image
A/C O Ring
68232799AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: Yellow.
MSRP $23.45
$17.10
MSRP $23.45
$17.10
14
68232802AA - Air Conditioners and Heaters: A/c O Ring for Mopar Image
A/C O Ring
68232802AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Green.
MSRP $21.00
$15.38
MSRP $21.00
$15.38
15
68157071AE - Air Conditioners and Heaters: A/c Suction Line for Mopar Image
A/C Suction Line
68157071AE
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: To Compressor.
MSRP $160.00
$108.37
MSRP $160.00
$108.37
15
68227136AD - Air Conditioners and Heaters: A/c Suction Line for Mopar Image
A/C Suction Line
68227136AD
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: To compressor.
MSRP $375.00
$250.88
MSRP $375.00
$250.88
16
68100682AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68100682AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: Suction Line to Accumulator. Expansion Valve End. Accumulator End After 5/27/08. Drier End. At Expansion Valve. After 6-17-08. 3/4". Lhd only. Suction line to H-Valve.
MSRP $31.70
$23.37
MSRP $31.70
$23.37
19
68157074AE - Air Conditioners and Heaters: A/c Discharge Line for Mopar Image
A/C Discharge Line
68157074AE
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
MSRP $108.00
$72.72
MSRP $108.00
$72.72
20
68100681AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68100681AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: 1/2". 3/8".
MSRP $32.60
$23.92
MSRP $32.60
$23.92
21
68232795AA - Air Conditioners and Heaters: A/c O Ring for Mopar Image
A/C O Ring
68232795AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: Yellow.
MSRP $24.25
$17.71
MSRP $24.25
$17.71
22
68232796AA - Air Conditioners and Heaters: A/c O Ring for Mopar Image
A/C O Ring
68232796AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine.
Description: Green.
MSRP $21.95
$16.05
MSRP $21.95
$16.05
25
6106156AA - Air Conditioners and Heaters: Screw for Mopar Image
Screw
6106156AA
Mopar Mopar
Notes: Engines: 3.0L I4 ECO DIESEL ENGINE. 3.6L V6 24V VVT Engine. Transmissions: 6-Spd Auto AISIN AS68RC Transmission. 6-SPEED AUTOMATIC 62TE TRANSMISSION. 6-SPEED DUAL ACTIVE DRIVE TRANS.
Description: M6x1x25. Line to Condenser Attaching. Discharge Line To Condenser. Discharge and Suction Line To Compressor.
MSRP $3.50
$2.52
MSRP $3.50
$2.52
